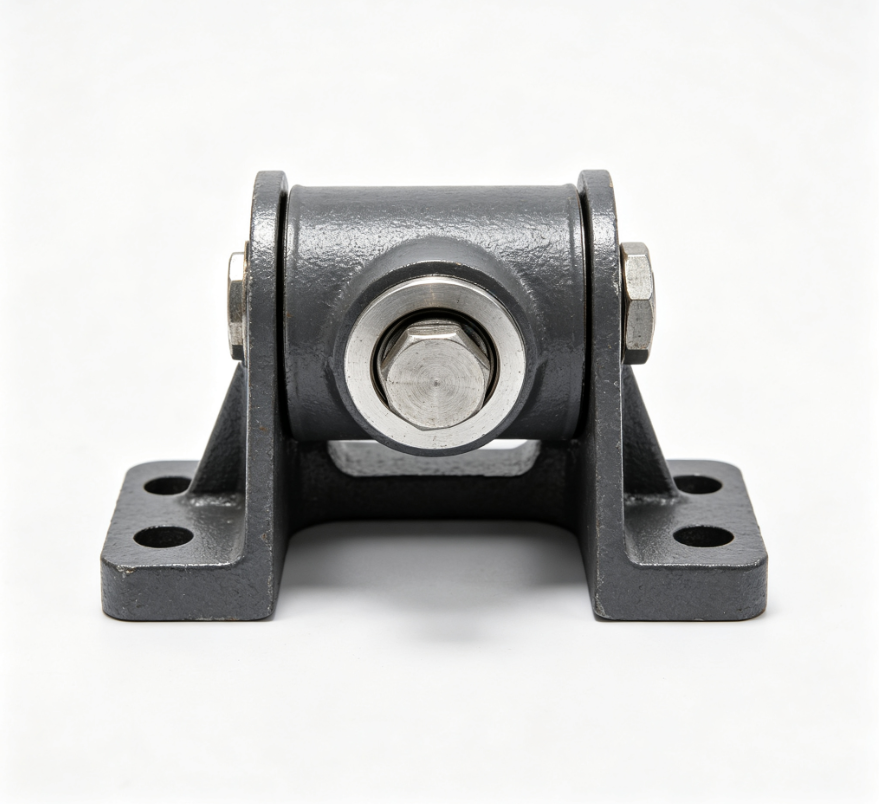

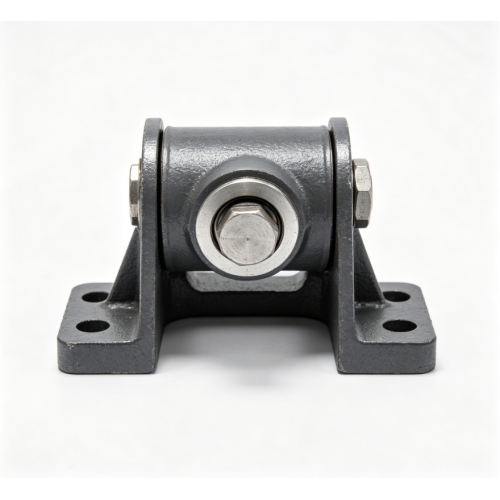

I-Mining Conveyor Idler Roller Bracket iyingxenye yesakhiwo evikela amarola angasebenzi ngobude besistimu yebhande lokuthutha lezimayini. Zisebenza ezindaweni ezibucayi zezimayini ezinemithwalo esindayo ehubhukayo, ukudlidliza okuqhubekayo, kanye nokuchayeka othulini nasemanzini, laba babakaki kufanele balondoloze ukuhleleka kwamarola okunembile kuyilapho bemelana nokuguga, umthelela, nokugqwala.
I-Ningbo Ruican ikhiqiza laba babakaki isebenzisa ukunemba kokutshala imali kwensimbi eyi-ZG270-500, kulandelwa umshini we-CNC wezimbobo ezifakwayo, izihlalo ezithwele, nezindawo zokuqondanisa. Ukukhiqizwa kwethu okuhlanganisiwe kuqinisekisa ikhwalithi engaguquki kuwo wonke ama-oda evolumu ephezulu, nokulandeleka okugcwele kusukela ekulingiseni kuye emkhiqizweni oqediwe.
| Parameter | Specification |
|---|---|
| Material | ZG270-500 (GS-52) cast steel |
| Tensile Strength | ≥ 500 MPa |
| Yield Strength | ≥ 270 MPa |
| Elongation | ≥ 18% |
| Impact Toughness | ≥ 35 J (at room temperature) |
| Hardness | 140–190 HBW |
| Heat Treatment | Normalized at 900°C |
| Parameter | Specification |
|---|---|
| Casting Process | Silica sol investment casting |
| Dimensional Tolerance | ISO 8062 CT6–CT7 |
| Surface Roughness | Ra 6.3–12.5 μm (as-cast); Ra 3.2 μm (machined) |
| Weight Range | 2–25 kg |
| Wall Thickness | 6–20 mm |
| Batch Size | 500–10,000+ units |
| Parameter | Specification |
|---|---|
| Bearing Seat Tolerance | H8 (bore fit) |
| Mounting Hole Position | ±0.1 mm |
| Flatness (mounting surface) | ≤ 0.1 mm |
| Surface Finish (bearing seat) | Ra 3.2 μm |
| Angle Tolerance (roller axis) | ±0.5° |
| Machining Equipment | 4-axis CNC horizontal machining center |
