| Uhlobo lokukhokha: | L/C,T/T |
| Incoterm: | FOB,CFR,EXW |
| Min. I-oda: | 100 Piece/Pieces |
| Ukuthutha: | Ocean,Land,Air,Express |
| I-Port: | Ningbo,Shanghai |
Share:
Ibhulogi: akukho
Origin: I-Ningbo
| Ukuthengisa Amayunithi | : | Piece/Pieces |
| Uhlobo lwephakheji | : | ibhokisi/iphalethi |
The file is encrypted. Please fill in the following information to continue accessing it

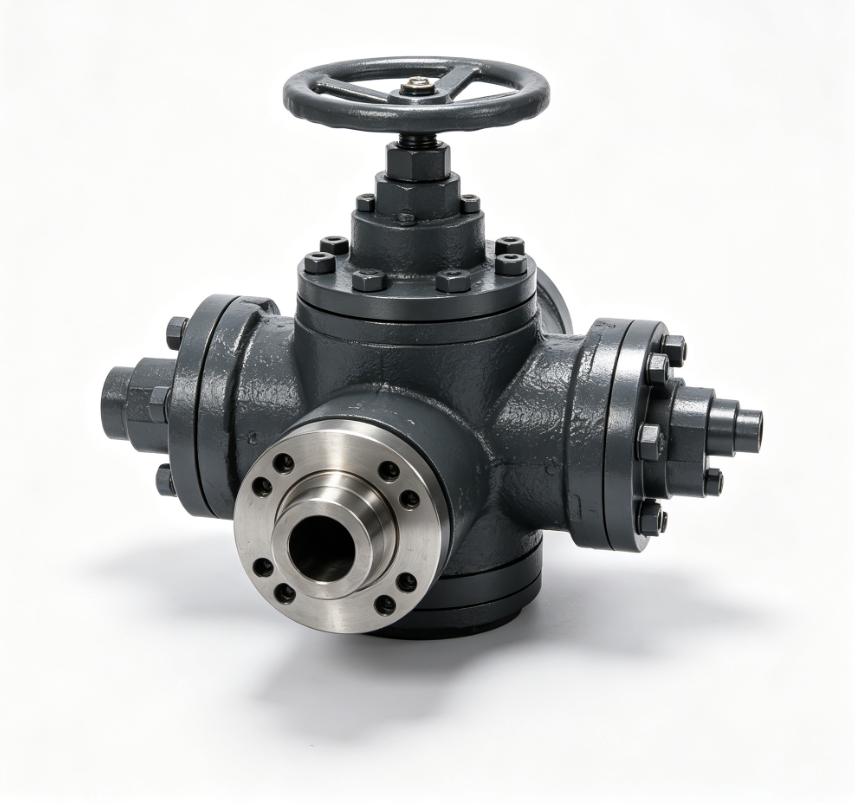

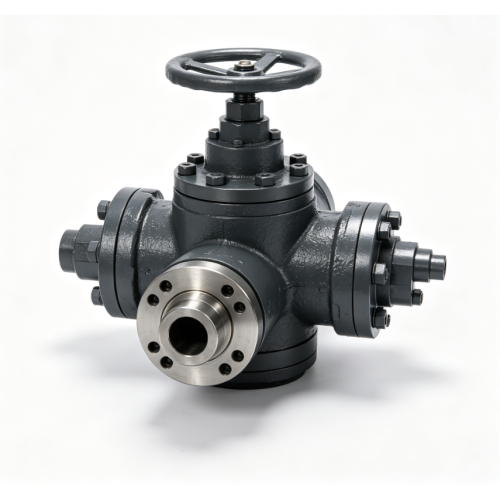

I -Oil Well Christmas Tree Valve Body iyingxenye equkethe ingcindezi esetshenziswa ezinhlelweni zekhanda likawoyela negesi ukuze kulawulwe ukugeleza kwama-hydrocarbons asuka emthonjeni. Njengoba siqanjwe ngokucushwa kwaso okufana nesihlahla kwamavalvu, ama-spools, nokufakwa, isihlahla sikaKhisimusi sisebenza ngaphansi kwengcindezi enkulu (kufika ku-10,000 PSI), izindawo ezibolayo ze-H2S/CO2, namazinga okushisa abanzi (-50°C kuya ku-+120°C).
I-Ningbo Ruican yenza lo mzimba we-valve usebenzisa ukunemba kokutshala imali kwe-AISI 4130 yensimbi ephansi ye-alloy, elandelwa umshini we-CNC we-multi-axis wobuso be-flange, ukuxhumana okunentambo, namaphaseji angaphakathi okugeleza. Zonke izingxenye zenzelwe ukucaciswa kwe-API 6A kanye nezidingo zokumelana nokuqhekeka kwe-sulfide ye-NACE MR0175 sulfide.
| Parameter | Specification |
|---|---|
| Material | AISI 4130 (25CrMo4) low-alloy steel |
| Tensile Strength | ≥ 655 MPa |
| Yield Strength | ≥ 517 MPa |
| Elongation | ≥ 17% |
| Hardness | ≤ 22 HRC (NACE MR0175 compliant) |
| Heat Treatment | Normalized + Tempered (Q&T) |
| Impact Toughness | ≥ 20 J (at -29°C, Charpy V-notch) |
| Parameter | Specification |
|---|---|
| Casting Process | Silica sol investment casting |
| Dimensional Tolerance | ISO 8062 CT5–CT6 |
| Surface Roughness | Ra 3.2–6.3 μm (as-cast); Ra 1.6 μm (machined) |
| Weight Range | 15–200 kg |
| Wall Thickness | 10–50 mm |
| Pressure Rating | 5,000–10,000 PSI (API 6A PSL 2–3) |
| Parameter | Specification |
|---|---|
| Flange Face Flatness | ≤ 0.02 mm (API 6A Ring Groove) |
| Bore Tolerance | ±0.03 mm |
| Thread Accuracy | API Spec 5B (API REG or buttress) |
| Surface Finish (flange) | Ra 1.6 μm (machined) |
| Ring Groove | Rex API 6A Type RX/RX-BX, ±0.025 mm |
| Concentricity | ≤ 0.05 mm |
